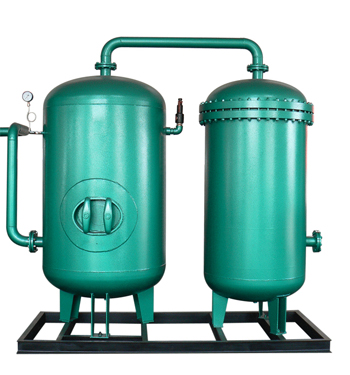

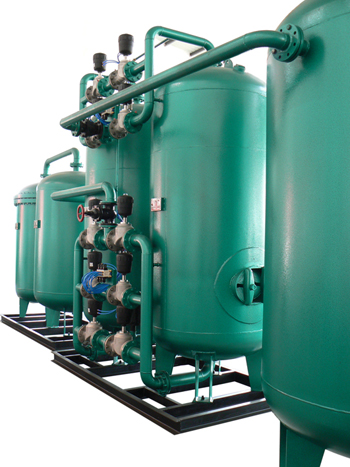

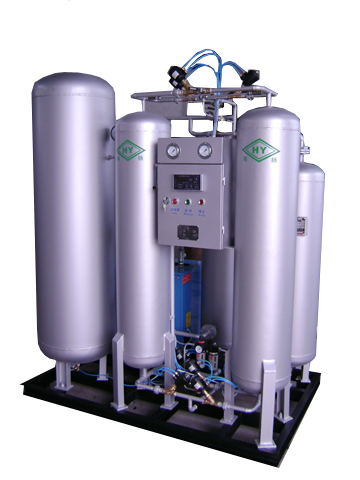

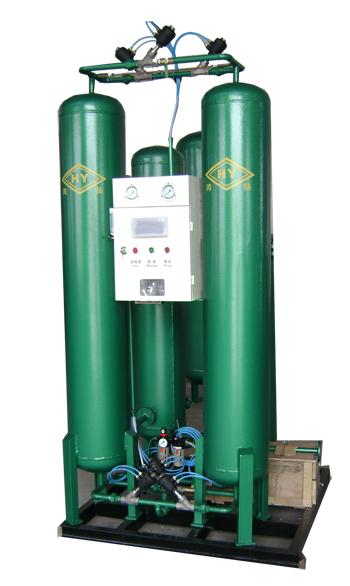

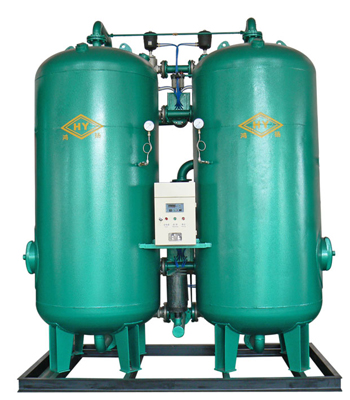

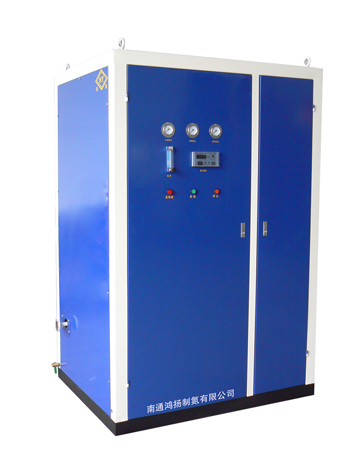

PSA Nitrogen Generator

Nitrogen
Nitrogen plant (also called Nitrogen, Nitrogen Generator) workflow is: air compressed by the compressor into the cold and dry machine freeze-dried in order to achieve PSA nitrogen systems air dew point requirement of raw materials. After another raw material in the air filter to remove oil and water into the air buffer tank in order to reduce pressure fluctuations. Finally, the pressure transferred through the pressure regulating valve rated working pressure, sent to the two sets adsorber (built-in carbon molecular sieve), the air in this have been isolated, the system was nitrogen. Raw air into one of the adsorber, output of nitrogen, another adsorber, then the vacuum desorption regeneration. Two sets adsorber alternate work, a continuous supply of raw material air, a continuous output of nitrogen. Nitrogen sent to the nitrogen buffer tank, through the flow meter measurement, analytical test equipment, qualified nitrogen reserve, fail to meet nitrogen shorting (just getting on Nitrogen pm)
